Externally Adjustable Inline PCP Regulator With Integrated Fillset
Compact inline PCP regulator with integrated fill set, offering externally adjustable and stable output pressure for consistent airgun performance.
- High quality products.
- Worldwide shipping.
- Order easily and secure online.
- Multiple shipping options available.
- Our customers rate us 9.9/10.
- 25+ years of experience.

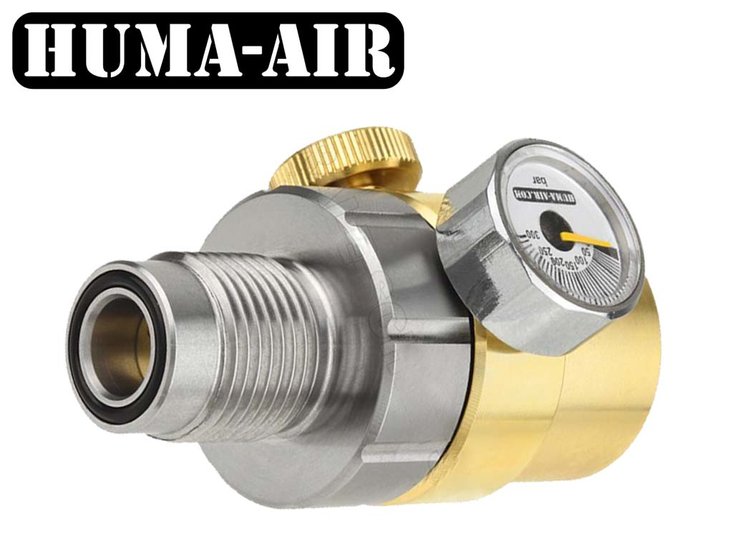

Huma-Air externally adjustable inline PCP regulator with integrated fill set
This externally adjustable inline PCP regulator is developed for shooters who want direct control over working pressure without modifying the rifle. The unit screws directly onto a 200 or 300 bar DIN cylinder and reduces the output pressure to a stable, user-defined level. This results in consistent pellet velocity and improved shot grouping.
The regulator features stepless external adjustment via a bronze control ring, allowing quick fine-tuning without disassembly. Three internal pressure ranges are available, making it suitable for a wide range of PCP air rifles and applications.
An integrated pressure gauge provides clear feedback on the set output pressure, while the built-in bleed screw allows safe depressurization. This combination enables the unit to function as a complete fill set, eliminating the need for a separate regulator system.
Manufactured from CNC-machined aircraft-grade aluminium and bronze, the regulator is built for durability and repeatability. The internal belleville spring system is designed for high precision, delivering a repeat cycle with less than 1% deviation. Each unit is individually assembled, tested, and calibrated to ensure consistent performance.
Key benefits:
- Externally adjustable output pressure without disassembly
- Stable pressure delivery for consistent velocity and improved accuracy
- Integrated fill set with pressure gauge and bleed screw
- Wide adjustable range through multiple pressure stacks
- Compact inline design for direct use on DIN 200 / 300 bar cylinders
Huma-Air Quality Control
Huma Air regulators are CNC produced out of high grade aircraft aluminum and bronze. To guarantee a perfect product, every regulator is individually assembled, tested in a computerized simulation program and adjusted to the requested pressure.
We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle with less than 1% difference.
Huma Air provides a 2-year warranty onto their regulators. Excluded from warranty are shipping costs and parts that are subject to normal wear and tear such as o-rings.
Specifications
| Brand | |
|---|---|
| Thread size | |
| Material | |
| Length (mm) | |
| Diameter (mm) | |
| Weight (gram) | |
| Fill pressure (Bar) | |
| Pressure range (Bar) | Stacking 1: 70-125 Bar, Stacking 2: 100-200 Bar, Stacking 3: 180-250 Bar |
Shipping and Payment
We ship your items well packed for safe and undamaged arrival in the country of destination with tracked priority shipping (unless this is specifically stated otherwise). As a buyer, you are responsible for checking that this product is legal according to your local laws and regulations. Unless specifically stated otherwise, all our Air Guns, Air Gun Parts and Accessories are supplied in/for high-power versions.
You can pay safely and secure online by means of all major payment providers, like paypal and credit cards companies.
Download instruction-manual-huma-air-external-adjustable-inline-pcp-regulator-rev-5 38 reviews for Externally Adjustable Inline PCP Regulator With Integrated Fillset
